的用途与介简/Brief Introduction：

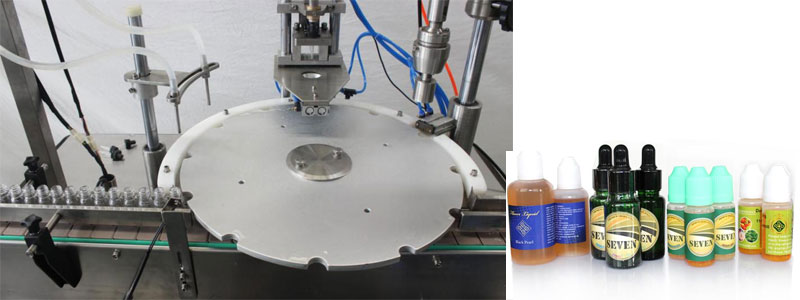

机器实适合用在2-30ML多种多样质量的扇形扁形泡沫塑料或玻璃窗瓶的眼麻醉药装灌.机器由高精准度气缸贷款机构精度等级贷款机构打造了精度等级等分盘准确定位功能上塞上盖;线速度度气缸贷款机构齿轮链传动打造了旋盖头的升缩;恒最大扭矩旋盖;消化吸收泵记量装灌;触碰屏把控好.无瓶不装灌,不放内塞,外盖.具准确定位功能精准度,齿轮链传动顺畅,保证盖子,记量准.工作容易等的特点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

结构特征/Characteristic：

◆微电脑上控制、装量准确度、的操作以便于。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆服务器转数可做好无级变速变频器调压。the mainframe running speed is stepless frequency conversion.◆产生量自主化学发光法控住。the product quantity can be controlled. ◆多个系统故障提示信息功效(如低大气压力。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆一键式熄火技能，对某个 轨道组件显现持续无装灌、无内塞具体情况可一键式熄火。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

科技参数指标/Main Technical Parameters：

不适用规格尺寸Filling Volume	2-30ml
生產学习能力Productivity	30-60瓶/分  70-100瓶/分30-60bottles/min   💧 70-100bottles/mꦿin
包装精准度Filling Precision	≤±1%
主机电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
手动上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
输出 Power	2.0 kw
产品净含量Weight	550 kg
外貌图片尺寸Dimension	1800*1000*1500mm
